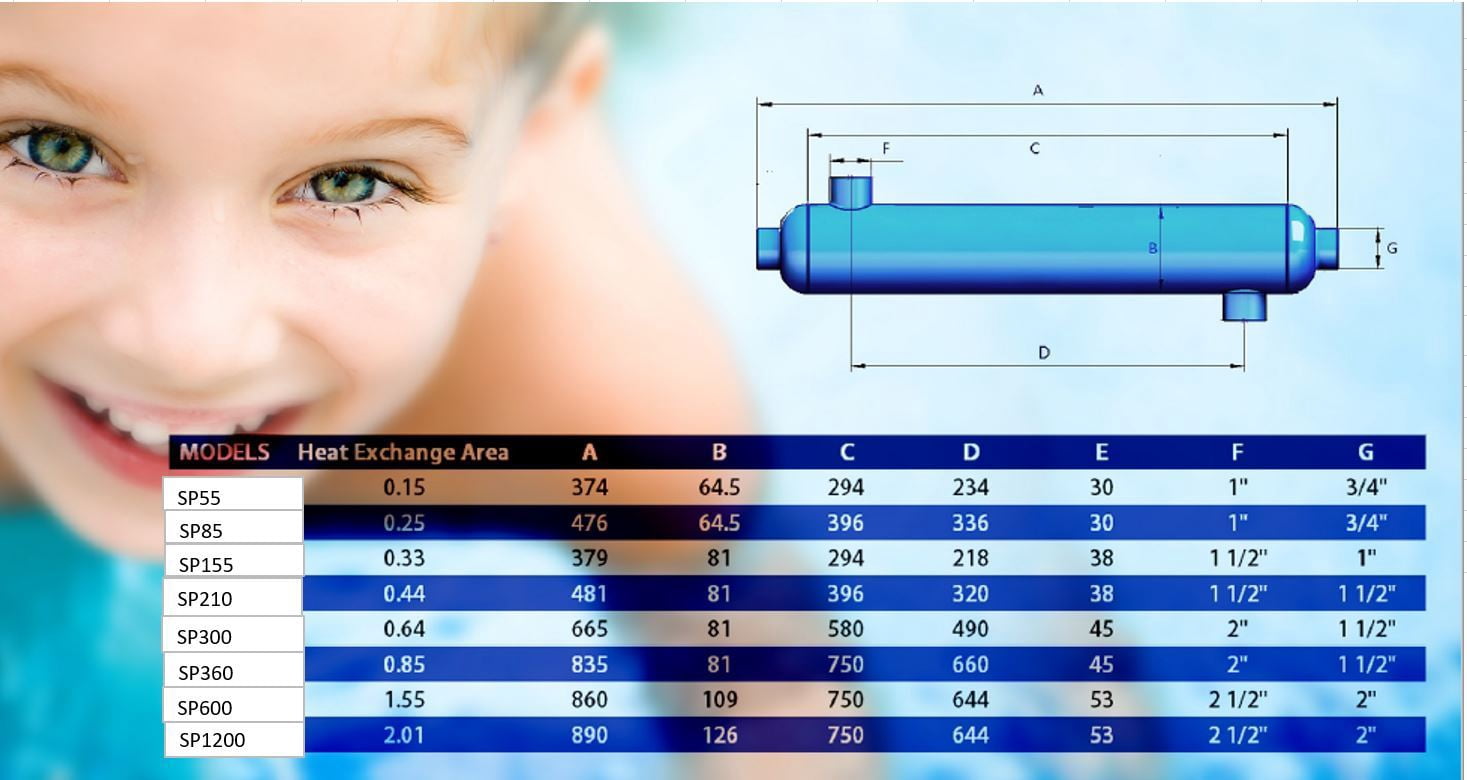

600,000 BTU Stainless Stell Tube and Shell Heat Exchanger for Pools/Spas ss

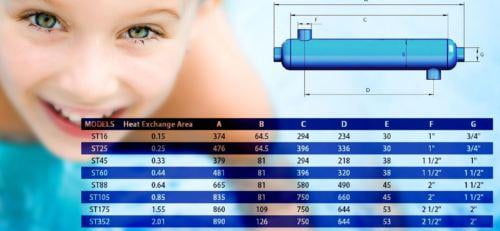

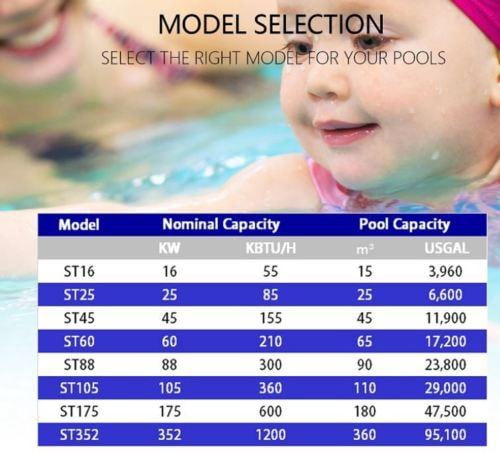

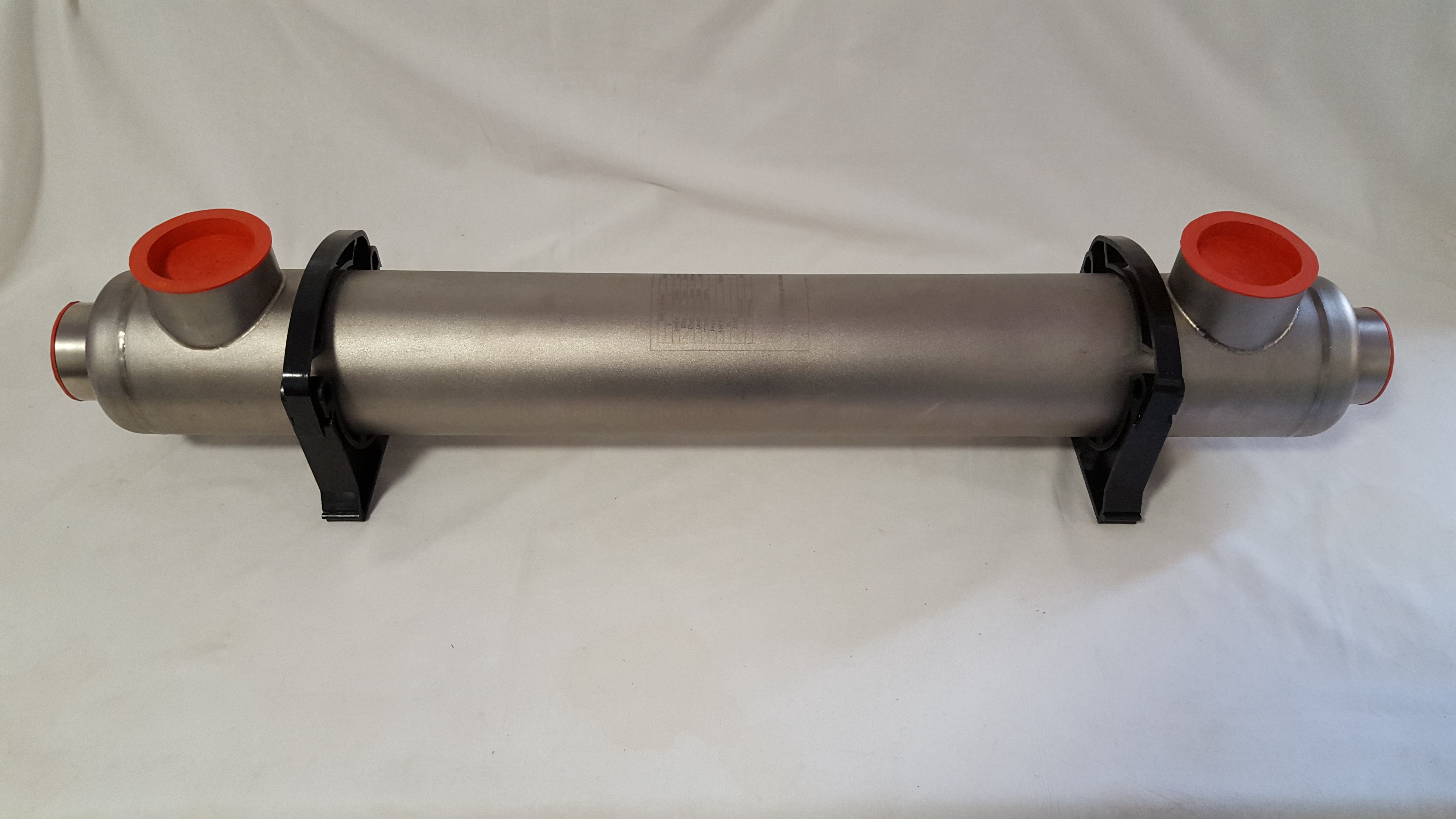

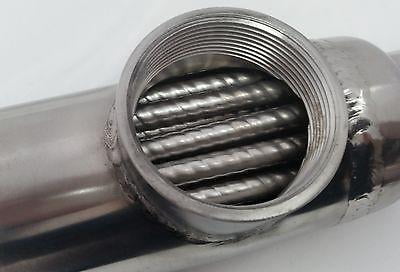

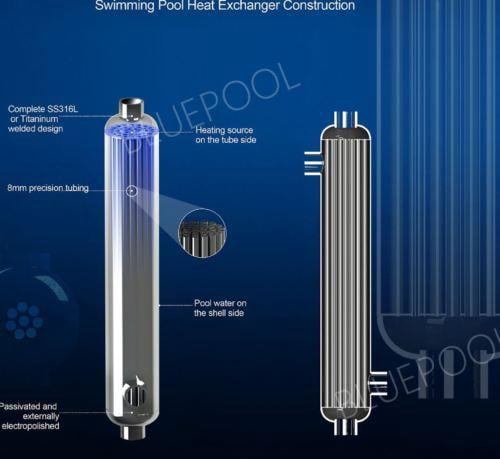

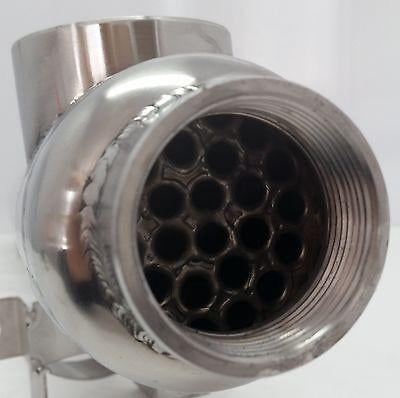

<h2 style="text-align: center;"><span style="text-decoration: underline;"><strong>600,000 BTU Stainless Steel Tube and Shell </strong></span></h2><h3 style="text-align: center;">* Same Side Ports</h3><h3 style="text-align: center;">* GPM Boiler Side – 17.44</h3><h3 style="text-align: center;">* GPM Pool Side – 114.16</h3><h3 style="text-align: center;">* Boiler Ports – 2" NPT</h3><h3 style="text-align: center;">* Pool Ports – 21/2" NPT</h3><h3 style="text-align: center;"><strong>*Port to Port - 25 3/8"</strong></h3><h3 style="text-align: center;">* Diameter – 4.38"</h3><h3 style="text-align: center;">* Length – 33 1/2"</h3><h3 style="text-align: center;">* Number of Tubes - 42</h3><h3 style="text-align: center;">* PSI Drop Hot – 1.22</h3><h3 style="text-align: center;">* PSI Drop Cold – 3.07</h3><h3 style="text-align: center;">* Working Pressure - 80 PSI</h3><h3 style="text-align: center;">* BTU rated with 180F Boiler and 80F Pool</h3><p></p><p align="center">This unit is suitable for pools/spas that are 51,600 gallons.</p><p align="center" style="text-align: left;">These heat exchangers are constructed with a stainless steel 316L shell and stainless steel 316L corrugated inner tubes to ensure high velocities inside the unit.</p><p align="center" style="text-align: left;">This is a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler circuit and any pool or spa circuit.</p><p align="center" style="text-align: left;"></p><p align="center">The units are designed for both horizontal and vertical mounting. Port sizes:(to/from Boiler) 2" - (to/from Pool)2 1/2".</p><p align="center" style="text-align: left;">It is recommended to always install the unit with the mounting bracket (mounting brackets included with each unit) fixed to a wall, and/or ceiling or floor to prevent water hammer or vibrations which could damage the unit.</p><p align="center" style="text-align: left;"><strong>IMPORTANT!!</strong> Always install the Stainless Steel Pool &amp; Spa Heat Exchanger in a<u>counter flow pattern</u>.</p><p align="center" style="text-align: left;">The units should be installed<u>downstream of the filtration and pumping equipment</u>. The boiler water must be assisted and the usual precautions taken to prevent air locks.</p><p align="center" style="text-align: left;">The pool water pump should be controlled by a thermostat in the pool pipe work before the heat exchanger and set at the required temperature.</p><p align="center"><u><strong>Stainless Steel Pool and Spa Heat Exchangers are not suited for saline or salt water environments</strong></u>. For those applications please use one of our Titanium units.</p><p align="center" style="text-align: left;"><strong>Note:</strong><br><span>1. For occasional (holidays &amp; weekends) use pools we recommend a 2x output multiplier to obtain a 2°F/hr heat up rate;</span><br><span>2. Nominal values are based on 60°C temperature between incoming heating and heated water.</span></p>
