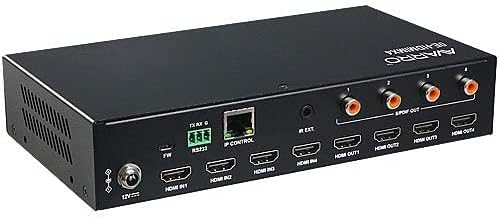

AVARRO 0E-HDMIMX4 HDMI Switcher with IR Remote Control, 4 Inputs x 4 Outputs, Smart EDID Management, Firmware Upgrading Via Both Micro-USB and Web UI
Product details
| Management number | 228865980 | Release Date | 2026/05/31 | List Price | $123.59 | Model Number | 228865980 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
AVARRO 0E-HDMIMX4 HDMI Switcher with IR Remote Control, 4 Inputs x 4 Outputs, Smart EDID Management, Firmware Upgrading Via both Micro-USB and Web UIKey Features:- 4K Ultra HD and HDCP 2.2 compliant- Built-in 4K-1080P downscaler- Smart EDID Management- Supports HDR formats including HDR 10, HLG, DOLBY VISION up to 4K60 444- Firmware upgrading via both micro-USB and Web UISpecifications:- Input/output port: 4 x HDMI IN, 4 x HDMI OUT, 1 x RS232, 1 x IP CONTROL (RJ45), 4 x SPDIF OUT (Digital), 1 x FW (Micro USB), 1 x DC 12V IN- Resolution supported: VESA: 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1440x900, 1600x900, 1600x1200 , 1680x1050 , 1920x1200 SMPTE: 720x576P, 1280x720P, 1920x1080P, 3840x21608, 4096x2160- Maximum data rate: 10.2Gbps- Maximum pixel clock: 340MHz- Audio format: HDMI in/out, Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS HD Master Audio and DTS:X S/PDIF OUT: Supports PCM 2.0/5.1, Dolby digital and DTS up to 5.1 Channel- Maximum data rate: 18 Gbps- Maximum pixel clock: 600 MHz- ESD protection: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)- Surge protection: Voltage: ±1 Kv- Power supply: DC 12V 2A- Power consumption (max): 10.8W- Device dimension: 8.46” x 1.65” x 4.73”- Product weight: 1.19 lbs
- 4K Ultra HD and HDCP 2.2 compliant
- Built-in 4K-1080P downscaler
- Smart EDID Management
- Supports HDR formats including HDR 10, HLG, DOLBY VISION up to 4K60 444
- Firmware upgrading via both micro-USB and Web UI<br><br>Specifications:<br>- Input/output port: 4 x HDMI IN, 4 x HDMI OUT, 1 x RS232, 1 x IP CONTROL (RJ45), 4 x SPDIF OUT (Digital), 1 x FW (Micro USB), 1 x DC 12V IN
| UPC | 840049305786 |
|---|---|
| ASIN | B0BYRT1P4V |
| Brand | AVARRO |
| Cable Type | HDMI, USB |
| Item Weight | 1.19 Pounds |
| Manufacturer | AVARRO |
| Model Number | 0E-HDMIMX4 |
| Item Type Name | Residential Video Signal Distribution, HDMI Matrix Switches, |
| Mfr Part Number | 0E-HDMIMX4 |
| Number of Ports | 4 |
| Connector Type Used on Cable | HDMI |
